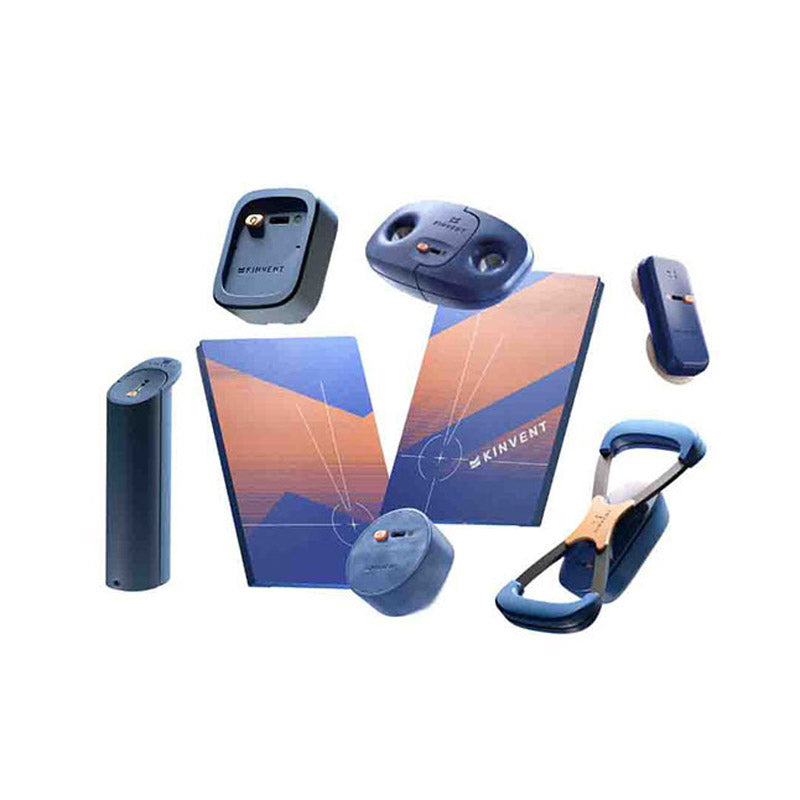

Kinvent Expert Pack

Kinvent Expert Pack

by Kinvent
$13,990.00 - $13,990.00
$13,990.00
$13,990.00 - $13,990.00
$13,990.00

✓ Authorized Kinvent Dealer
✓ Lowest Price Guaranteed
✓ FREE & FAST Shipping: In Stock and Ready to Ship
✓ Questions? Call an RFA Team Member: 1-855-864-6442

Large Plates And Dynamic Force

Kinvent Expert Pack

The K-Deltas are what define this pack. They are Kinvent's large-surface force plates, categorised for dynamic force, symmetry and jump analysis, and the surface area is the point: a person can land on them, step across them or drive through them, which a small plate cannot accommodate. Kinvent publish 2000 kg of capacity per platform, an accuracy figure of ±0.1%, a sampling rate of 1000 Hz / 2000 Hz (Full CoP) and 20 hours of continuous operation per charge for those platforms. Paired with the K-Myo surface electromyograph, the pack records the two things a dynamic task produces at once, the force under the feet and the activation in the muscle.

Its itemised contents are seven sensors: K-Push, K-Pull, K-Move, K-Grip with its accessory, K-Bubble, K-Myo with accessories, and the K-Deltas. That list is what ships, and it is what we have published here. One year of Kinvent Physio comes with the pack on the EXCELLENCE tier, the same tier the Advanced Pack carries. From that rung upward the software figures stop changing, so what separates these packs is the plate system on the floor.

Sensors
7
K-Deltas in the itemised list
Plates
K-Deltas
2000 kg per platform
EMG
K-Myo
One unit with accessories
Licence
EXCELLENCE
One year, as on Advanced
Jump analysis Symmetry Dynamic force EXCELLENCE licence
Kinvent Expert Pack

Where The Software Stops

The licence is already at its ceiling

Advanced, Expert and Ultimate all ship the EXCELLENCE subscription. From the Advanced Pack upward not one figure in Kinvent's tier table changes again, so a step between those rungs buys equipment and nothing else. This is what the tier already holds.

🔒
The same tier as Advanced
Excellence is carried by this pack, by the Advanced Pack below it and by the Ultimate Solution Pack above. Comparing those three is a hardware comparison from beginning to end.
Excellence throughout
🏢
Twenty and twenty
Terminals and patient profiles both sit at twenty here, against six in the middle of the table and three at the entry. Departments working out of several rooms are why that figure exists.
20 / 20
📊
Group testing and raw export
Group testing and CSV export of raw data are Excellence rows, and both come with this pack. Jump figures that end their life in a spreadsheet depend on the second of them.
Both included
🎥
Video and the full library
Video K-apture and the Excellence protocol library complete the tier. A landing captured on video beside its force trace can be reviewed long after the session ends.
Excellence rows

What The Seven Sensors Read

Nine kinds of reading, one app

Each figure below comes from the published page of the sensor that produces it. Every one of them lands in the Kinvent app under the same athlete profile.

⬇️
Ground Reaction Force
K-Deltas, 2000 kg per platform
⬆️
Jump Height
Per repetition, from the plate data
↔️
LSI Asymmetry
Left against right, per trial
📈
Compressive Force
K-Push, up to 90 kg at 0.1 kg
🔗
Tensile Force
K-Pull, isometric and dynamic
✊
Grip Force
K-Grip, peak grip strength
💨
Air Pressure
K-Bubble, converted into force
📐
Joint Angle
K-Move, better than 0.5 degrees
⚡
Muscle Activation
K-Myo, surface EMG at the skin

Sensor Detail

The plates this rung is built around

Kinvent K-Deltas large format force plates
Large plates

K-Deltas, and the numbers behind them

Kinvent list the K-Deltas under dynamic force, symmetry and jump analysis, and they are the only sensor in this pack with a published sampling rate. Take-off in a countermovement jump is over in a fraction of a second, so 1000 Hz / 2000 Hz decides whether impulse and the shape of the force build survive into the analysis or get averaged away. Two thousand kilos of capacity on each plate leaves headroom above a loaded athlete landing from height.

  • 2000 kg capacity per platform
  • Sampling rate of 1000 Hz / 2000 Hz (Full CoP)
  • Accuracy published at ±0.1%
  • 20 hours of continuous operation per charge
  • Bluetooth to the Kinvent app, standard platform listed at 27.56" × 8.66" × 18.9"
2000 kg 1000 / 2000 Hz 20 h
Single-leg countermovement jump on Kinvent K-Deltas plates
Jump and symmetry

One platform per leg, one number per side

Kinvent name three jump protocols on these plates: the countermovement jump, the squat jump and the drop jump. Because the two platforms read independently, any two-footed task becomes a two-channel measurement and the app reports the Limb Symmetry Index between the sides. Single-leg protocols run on one plate at a time, which is the format a return-to-sport conversation usually asks for.

  • Countermovement jump, squat jump and drop jump
  • Jump height, maximal force and impulse per repetition
  • Force-velocity profile and DSI from the same testing
  • Asymmetry reported as an LSI value for each trial
  • IMTP, the ASH test and the McCall test on the same surface
CMJ Drop jump LSI
Kinvent K-Force Plates, the smaller portable plate system
Two plate systems

K-Deltas against the K-Force Plates

Kinvent build both, and they are not interchangeable. The K-Force Plates are the portable, vertical-force option at roughly 600 kg per platform and 11.02 lbs, built around centre of pressure, the Romberg test and weight distribution in standing work. The K-Deltas carry a far larger surface, 2000 kg per plate and a published sampling rate, which is what jump, landing and isometric testing asks for. This pack itemises the K-Deltas. The Ultimate Solution Pack is the rung that itemises both systems together.

  • K-Force Plates: approx. 600 kg per platform, 11.02 lbs, no sampling rate published
  • K-Deltas: 2000 kg per platform, 1000 Hz / 2000 Hz, 66.14 lbs for the standard size
  • Balance, CoP and Romberg sit on the smaller plates
  • Jump, landing and drop testing sit on the large ones
  • Both systems report into the same Kinvent app
600 kg vs 2000 kg K-Deltas itemised
Kinvent K-Myo surface EMG sensor worn on the leg
Neuromuscular

K-Myo, running with the plates

The contents itemise a single K-Myo unit together with its accessories. Kinvent describe it as capturing real-time muscle activation data during movement, reported in the app as activation, timing and coordination. Recorded during a task on the K-Deltas, it answers which muscle was working and when, while the plates answer how much force reached the floor.

  • Wireless, wearable surface EMG, nothing inserted
  • Activation, timing and coordination in the Kinvent app
  • Multi-coloured electrode cables to the surface electrodes
  • One unit, with accessories, in this pack
Surface EMG One unit

Where The Pack Gets Used

Six jobs across seven sensors

Every application below is one Kinvent publish for a sensor itemised in this pack.

🦖
Vertical jump testing
Countermovement, squat and drop jumps on the K-Deltas, with jump height, maximal force and impulse recorded per repetition.
🔄
Return-to-sport decisions
Single-leg protocols on one plate at a time, with asymmetry reported as a Limb Symmetry Index rather than an impression.
💪
Isometric strength batteries
IMTP, the ASH test and the McCall test on the plates, with K-Push and K-Pull covering the handheld and anchored positions.
🩹
Rehabilitation monitoring
K-Move tracks joint mobility after an injury, K-Bubble runs progressive neck, back and lower limb work, and each visit's figure is held against the last.
🧠
Neuromuscular fatigue
K-Grip is positioned by Kinvent as an indicator of neuromuscular function and fatigue level, and K-Myo lists fatigue among its study outputs.
🔬
Research and squad screening
Group testing and CSV export of raw data are Excellence rows, and the K-Deltas carry a published ±0.1% accuracy figure and sampling rate.

The Pack Ladder

Expert against the rungs either side

All three of these packs ship the same EXCELLENCE subscription for twelve months, so the only thing that changes between them is equipment. Read the itemised contents, because Advanced and Expert hold different plate systems.

Kinvent Advanced Pack
Advanced
Seven sensors with the K-Force Plates as the plate system, and the K-Myo added with its accessories. The first rung whose listing names the EXCELLENCE tier.
7 sensors K-Force Plates K-Myo with accessories EXCELLENCE, one year
Shop the Advanced Pack
You're Here
Kinvent Expert Pack
Expert
Seven sensors with the K-Deltas as the plate system. Large-surface platforms at 2000 kg per plate, built for dynamic force, symmetry and jump analysis.
7 sensors K-Deltas, 2000 kg per platform One K-Myo with accessories EXCELLENCE, one year
Currently viewing
Kinvent Ultimate Solution Pack
Ultimate Solution
Both plate systems in one order, two K-Myo units as a duo pack, frames under the K-Force Plates and a duffle bag to move the kit in.
K-Force Plates and K-Deltas 2 K-Myo units Plate frames and duffle bag EXCELLENCE, one year
Shop the Ultimate Solution Pack

What's In The Box

🦖 K-Deltas Large-surface force plates, 2000 kg per platform, for dynamic force, symmetry and jump analysis
⚡ K-Myo, with accessories Wireless surface electromyograph reading muscle activation, timing and coordination
📈 K-Push Handheld dynamometer for isometric strength, up to 90 kg with 0.1 kg accuracy
🔗 K-Pull Traction dynamometer for tensile force, isometric and dynamic, anchored in line
✊ K-Grip, with its accessory Grip dynamometer for peak grip force, isometric holds and repetition sets
💨 K-Bubble Inflatable pressure sensor reading muscle activation, strength and endurance through air
📐 K-Move Portable goniometer for joint range of motion, accurate to better than 0.5 degrees
📅 Kinvent Physio, EXCELLENCE tier One year of the subscription, running alongside the seven sensors

Full Spec Sheet

Specifications

The Pack

Sensors itemised 7
Plate system K-Deltas
EMG units 1, with accessories
Subscription Kinvent Physio, EXCELLENCE, one year
SKU 15-4384

K-Deltas Platforms

Capacity 2000 kg per platform
Accuracy ±0.1%
Sampling rate 1000 Hz / 2000 Hz (Full CoP)
Battery 20 h continuous operation
Connection Bluetooth
Standard size 27.56" × 8.66" × 18.9"
Standard weight 66.14 lbs

Force And Pressure Sensors

K-Push range Up to 90 kg, accuracy 0.1 kg
K-Push sensing element Two flat 50 kg load cells
K-Pull measurement Tensile force, isometric and dynamic
K-Pull capacity Not published by Kinvent
K-Grip output Peak grip force
K-Bubble method Controlled air pressure variation

Motion And EMG

K-Move accuracy Better than 0.5°, minimal drift
K-Move inertial unit 9-degree-of-freedom IMU
K-Move battery 7 hours
K-Myo sensor type Portable surface electromyograph
K-Myo application Non-invasive, worn on the body

Software

Application Kinvent app, shared across every sensor
Terminals 20 on the EXCELLENCE tier
Patient profiles 20 on the EXCELLENCE tier
Excellence rows included Group testing, CSV raw export, Video K-apture, Excellence protocols
K-Deltas app modes Smart Mode and Group Mode

Not Published By Kinvent

Warranty term Not published
K-Myo sampling rate Not published
K-Myo battery life Not published
K-Push, K-Pull, K-Grip, K-Bubble battery Not published
K-Grip force range and accuracy Not published
K-Deltas ingress protection rating Not published

Trusted & Certified

Kinvent's published certifications

These are the certifications and registrations Kinvent publish for their platform and their quality and information security systems. They cover the company and its medical device and data handling, not a performance claim about this sensor.

CE
CE Mark
European Union conformity
FDA
FDA
US Food and Drug Administration
HC
Health Canada
Medical device registration
13485
ISO 13485
Medical device quality management
9001
ISO 9001:2015
Quality management
27001
ISO 27001:2022
Information security management
HDS
HDS
French health data hosting
🔒
HIPAA
Healthcare privacy compliance

Who Uses Kinvent

Over 10,000 professionals and organizations

Kinvent name the following among the organizations working with their sensors. The list is theirs, published on their own product pages.

HSS
Hospital for Special Surgery
Orthopedics and sports medicine
MLB
Major League Baseball
Professional baseball
NFL
National Football League
Professional football
NBA
National Basketball Association
Professional basketball
MLS
Major League Soccer
Professional soccer
🎓
Stanford University
Collegiate athletics and research

Questions

Frequently Asked Questions

Seven sensors: one K-Push, one K-Pull, one K-Move, one K-Grip with accessory, one K-Bubble, one K-Myo with accessories and one set of K-Deltas. A Kinvent Physio subscription runs alongside them for a year on the EXCELLENCE tier.
Its itemised contents do not include the K-Force Plates. Kinvent's own marketing text for this pack describes it as building on the pack below, which does carry them, and the two statements disagree. We publish the itemised list, because the itemised list is what ships. If you want both plate systems in one order, the Ultimate Solution Pack itemises the K-Force Plates and the K-Deltas together.
Kinvent categorise them under dynamic force, symmetry and jump analysis. The published figures are 2000 kg of capacity per platform, an accuracy of ±0.1%, a sampling rate of 1000 Hz / 2000 Hz (Full CoP) and 20 hours of continuous operation per charge. Kinvent do not publish the test conditions behind the accuracy figure, so read it as the manufacturer's own statement.
Scale and scope of testing. The K-Force Plates are the portable, vertical-force option at approximately 600 kg per platform and 11.02 lbs, built around centre of pressure, the Romberg test and weight distribution in standing work, with no sampling rate or accuracy figure published. The K-Deltas carry a far larger surface, 2000 kg per plate, a published sampling rate and a published accuracy figure, which is what jump, landing and drop testing asks for.
Kinvent name the countermovement jump, the squat jump and the drop jump for jump testing, and the isometric mid-thigh pull, the ASH test and the McCall test for the isometric battery. Force-velocity profiling and DSI come out of the same testing, and balance work covers double-leg and single-leg stance with centre of pressure and CoP velocity.
EXCELLENCE, for one year, as RFA's listing states. It is the top of Kinvent's three tiers, and the rung beneath this one carries it too, as does the rung above.
Equipment. Both packs ship the same EXCELLENCE subscription with the same twenty terminals and twenty profiles, so the whole difference sits on the floor. Advanced itemises the K-Force Plates for balance and posture work; this pack itemises the K-Deltas, the large plates built for jump and symmetry testing.
Yes, one K-Myo with accessories. Kinvent describe it as capturing real-time muscle activation data during movement, so activation can be recorded in the same session as a task on the plates. The K-Myo Duo Pack is the two-sensor listing, and the Ultimate Solution Pack is the rung that itemises two units.
Four measurements the plates cannot take. K-Push reads isometric force pressed into a pad, published up to 90 kg with 0.1 kg accuracy. K-Pull reads tensile force along an anchored line, which keeps the tester out of the load path. K-Grip reads peak grip force. K-Bubble reads force through air inside a soft accessory, for positions where a rigid pad has nowhere to sit. K-Move adds joint range of motion at better than 0.5 degrees.
No. Every sensor in this pack pairs to the Kinvent app, which is how Kinvent build the range. For the K-Deltas they also name a Smart Mode that automates testing and analysis and a Group Mode for sessions running several athletes one after another.
Yes. Every sensor itemised here has its own RFA listing, and the pack exists to put them in one order with the subscription attached. Priced one by one the seven sensors come to a little under the pack figure, and the difference covers the twelve-month subscription that comes with it.
Neither is itemised for this pack. A duffle bag is listed with the Evolution Pack and with the Ultimate Solution Pack, and plate frames are listed only at the top of the ladder. Kinvent list force plate frames as their own item, both standalone and in a version supplied with the K-Force Plates.
Several things a buyer would reasonably ask for. There is no warranty term published for any sensor in it. Battery life is published for the K-Deltas at 20 hours and for the K-Move at 7 hours, and for K-Push, K-Pull, K-Grip, K-Bubble and K-Myo it is not published at all. K-Grip carries no force range or accuracy figure, K-Pull carries no load capacity, and K-Myo carries no sampling rate in Hz despite Kinvent describing the rate as high. Ask us before you buy on any of those assumptions and we will put the question to Kinvent in writing.
Clinics and sports medicine teams whose testing includes movement as well as static holds. Kinvent name physical therapists, sports performance professionals, physicians and researchers among the users of the K-Deltas, working in rehabilitation centres, clinics, gyms, performance centres and field testing. Jump and symmetry work is what the large plates were categorised for, and the handheld sensors cover the rest of the assessment.
  • Sensors: 7 as itemised, with the K-Deltas as the plate system
  • Measures: dynamic force and symmetry on the plates, plus strength, tensile force, grip, pressure, joint angle and muscle activation
  • Licence included: one-year Kinvent Physio subscription, EXCELLENCE tier
  • Terminals: 20 devices signed in at once
  • Patient profiles: 20
  • Group training: included
  • Group testing: included, an EXCELLENCE row
  • Group export of reports: included
  • CSV export of raw data: included, an EXCELLENCE row
  • Smart Mode: included, listed for up to 5 sensors
  • Video K-apture: included, an EXCELLENCE row
  • Protocols: the Premium and Excellence libraries
  • App: K-Force app for every sensor in the pack
  • Seven sensors itemised: K-Push, K-Pull, K-Move, K-Grip with accessory, K-Bubble, K-Myo with accessories and the K-Deltas
  • K-Deltas: Kinvent's large-surface platforms, categorised for dynamic force, symmetry and jump analysis
  • Surface area: large plates take a whole foot in any position a fast task calls for
  • Two plates: each reads independently, so the record shows how work divided between the sides
  • K-Myo: one surface electromyograph with accessories, recording activation during a task on the plates
  • Handheld set: push, pull, grip and pressure sensors retained, with the K-Move goniometer
  • Licence: a one-year Kinvent Physio subscription on the EXCELLENCE tier, the same tier as the pack below
  • Terminals and profiles: twenty of each
  • Group testing and CSV export: both EXCELLENCE rows, both included
  • Video K-apture: included, so a landing can be reviewed beside its force trace
  • Plate systems: the itemised contents carry the K-Deltas and not the K-Force Plates
  • 1 Hand-Held Dynamometer: K-Push
  • 1 Traction Dynamometer: K-Pull
  • 1 Goniometer: K-Move
  • 1 Grip Dynamometer plus Accessory: K-Grip
  • 1 Pressure Dynamometer: K-Bubble
  • 1 Surface Electromyograph plus Accessories: K-Myo
  • 1 Large Force Plates: K-Deltas
  • Licence: one-year subscription to the Kinvent Physio EXCELLENCE tier
  • K-Force Plates: not part of this pack's itemised contents, which is the list we publish; the Ultimate Solution Pack itemises both plate systems together
  • Duffle bag and plate frames: neither is itemised for this pack
