Chattanooga Intelect Legend 2

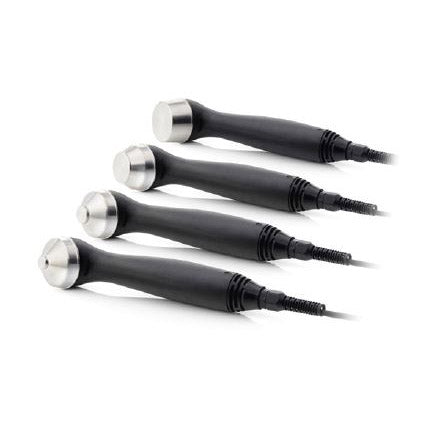

Chattanooga Intelect Legend 2 Ultrasound Applicator

The Chattanooga Intelect Legend 2 Ultrasound Applicator is a pre-calibrated, ergonomically designed ultrasound applicator that works at 1 MHz or 3.3 MHz on the Intelect Legend 2. Coupling detection and monitoring are built into the head, to keep the proper energy going to the patient. Four sound head sizes share one cable and connector, 1, 2, 5 and 10 cm2. The 1 cm2 head suits fingers, wrists and other small joints, and the 10 cm2 covers the most surface per pass on a large muscle group. Each applicator is rated IPX7, and Chattanooga backs it for 12 months.

Effective radiating area, the part of the face that actually emits, runs 0.9 to 1.0, 1.0 to 1.5, 2.5 to 2.7 and 6.0 to 6.8 cm2 in size order, with a beam nonuniformity ratio under 5:1. Continuous output runs 2 W on the 1 cm2 head up to 6.8 to 12 W on the 10 cm2. The applicator fits the Chattanooga Intelect Legend 2 in both its two-channel and four-channel builds.

  • ERA, 1 cm2 head: 0.9-1.0 cm2
  • ERA, 2 cm2 head: 1.0-1.5 cm2
  • ERA, 5 cm2 head: 2.5-2.7 cm2
  • ERA, 10 cm2 head: 6.0-6.8 cm2
  • Beam nonuniformity ratio: Under 5:1
  • Applicator ingress rating: IPX7
  • Applicator warranty: 12 months
  • Continuous output, 1 cm2 to 10 cm2 head: 2 W up to 6.8-12 W
  • Pulsed output, 1 cm2 to 10 cm2 head: 3 W up to 13.6-18 W
  • Part numbers: 15-0160 (1 cm2), 15-0161 (2 cm2), 15-0162 (5 cm2), 15-0163 (10 cm2)
  • Sizes: 1, 2, 5 and 10 cm2
  • Frequencies: 1 MHz or 3.3 MHz
  • Calibration: Pre-calibrated
  • Fits: Chattanooga Intelect Legend 2, two-channel and four-channel builds
  • Coupling detection: Yes, with coupling monitoring
  • Transport 2: Takes its own Transport 2 Ultrasound Applicator
