InBody Dial H20N vs. H30 vs. H40: Which Smart Scale Should You Buy?

All three scales share the same clinical-grade foundation — 8-point electrode measurement, DSM-BIA technology, and the InBody app. So what actually separates a $299 H20N from a $499 H40? More than you might expect.

Updated 2026 · 8 min read

Why InBody Is Different from Other Smart Scales

Most bathroom scales — even expensive "smart" ones — have electrodes only in the footplate. They measure the impedance of your lower body and then estimate the rest using statistical models built from demographic data. The result is a single reading that's heavily influenced by your age, gender, and how hydrated you are.

InBody's approach is fundamentally different. Every model in the Dial series uses 8-point tactile electrode technology — four on the footplate and four on the handrail, including patented thumb electrodes — so both the upper and lower body are measured directly. No estimation required. The body is then treated as five separate segments (right arm, left arm, trunk, right leg, left leg), each measured independently.

This is the same Direct Segmental Multi-frequency Bioelectrical Impedance Analysis (DSM-BIA) method InBody deploys in clinical devices used by hospitals, sports medicine programs, and research institutions. The Dial series brings that methodology home.

Where the three models diverge is in how many frequencies they use, how deep their output analysis goes, and how frictionless the day-to-day experience is. Let's look at each.

InBody Dial H20N — The App-First Entry Point

Technology

The H20N uses two frequencies — 20 kHz and 100 kHz — across five body segments. That's a step above single-frequency consumer scales, which can only estimate impedance at one frequency and are far more susceptible to hydration fluctuations. Two frequencies let the H20N better differentiate between intracellular and extracellular water, improving the consistency of fat and muscle readings.

How it works day-to-day

Here's the key workflow difference from the H30 and H40: you start every test from the InBody app. Open the app, tap your profile, step on. The scale measures via Bluetooth and uploads results to your profile. This means your phone needs to be in the same room every time — not a dealbreaker, but it's a meaningful friction point compared to just stepping on and walking away.

On the upside, this architecture allows unlimited users. There's no on-device profile limit — anyone in the household can download the InBody app and use the H20N for their own profile. For large families or shared living situations, that's a genuine advantage over the 20-profile cap on the H30 and H40.

Outputs

The LCD displays four metrics directly: Weight, Skeletal Muscle Mass, Body Fat %, and BMI. Full results — including Visceral Fat Level, Basal Metabolic Rate, InBody Score, and Body Fat Mass — live in the app. You won't get the advanced metrics like Body Balance, Waist-Hip Ratio, or Soft Lean Mass that come with the H30 and H40.

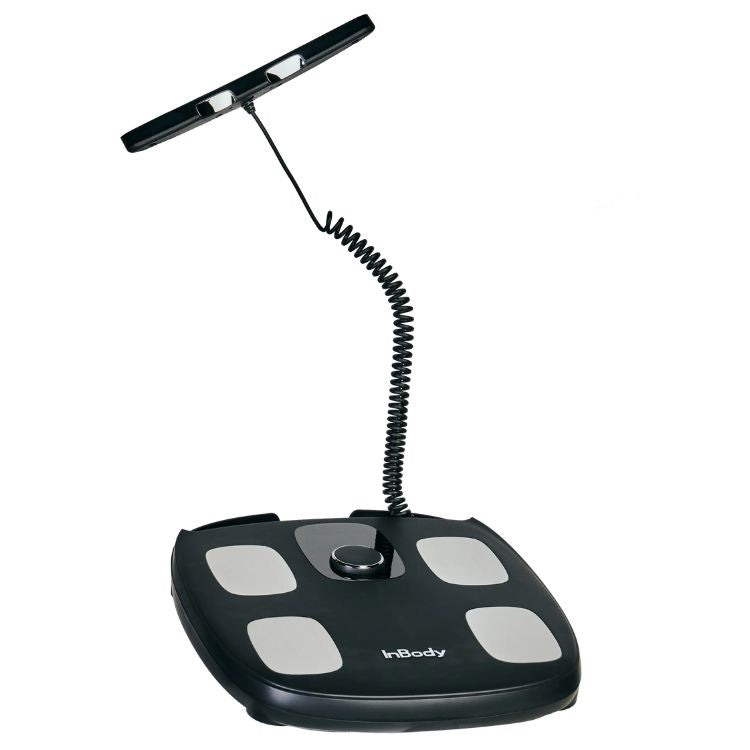

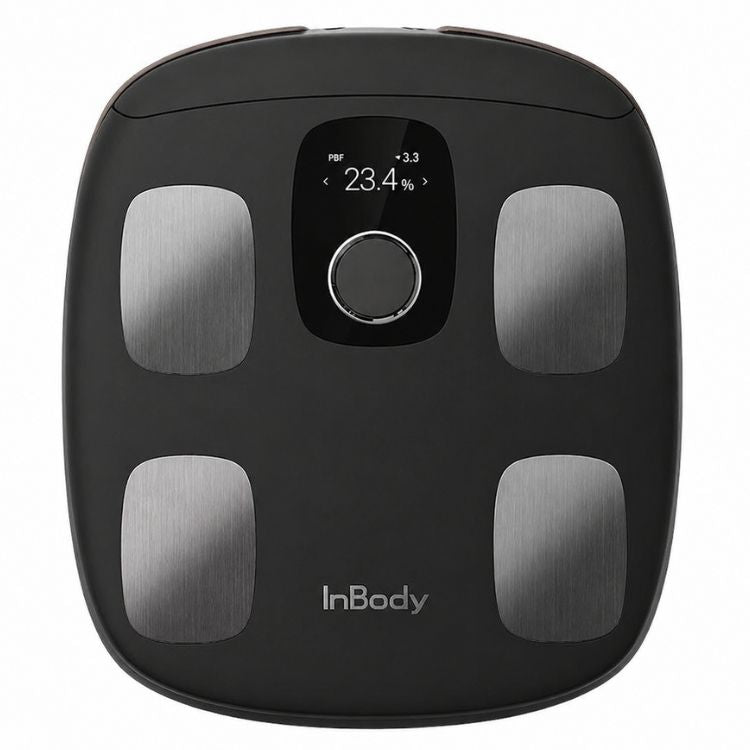

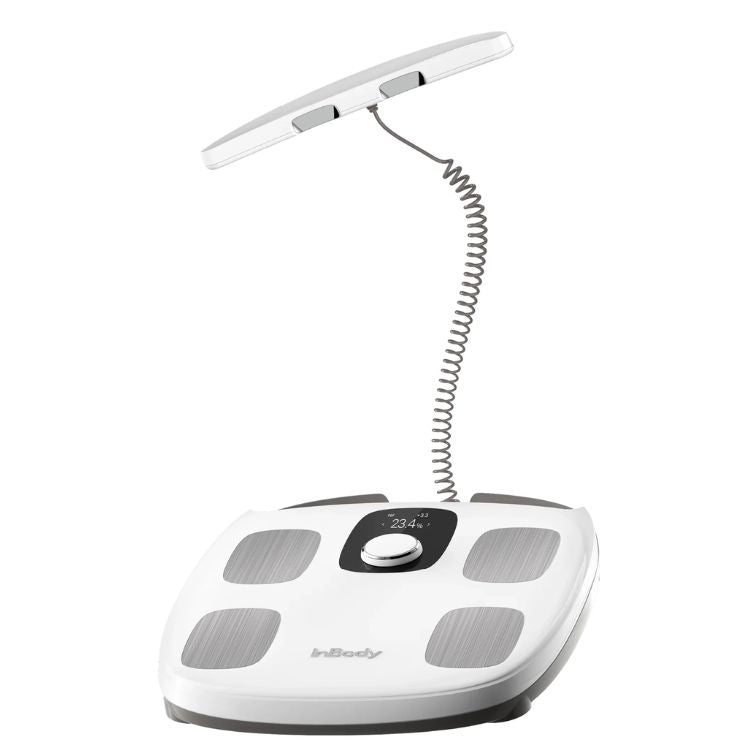

InBody Dial H30 — The Household Workhorse

The frequency upgrade matters

Moving from two to three measurement frequencies (5 kHz, 50 kHz, and 200 kHz) isn't just a spec number — it meaningfully improves the ability to distinguish between different fluid compartments in the body. Low frequencies (5 kHz) measure primarily extracellular water; mid frequencies (50 kHz) penetrate cell membranes and capture total body water; higher frequencies (200 kHz) provide additional resolution on intracellular fluid. Together, these three frequencies give the H30 a more complete picture of body composition and make readings more robust to short-term hydration changes.

Wi-Fi changes the routine

This is the most underrated upgrade in the series. With the H20N, you need your phone nearby for every test. With the H30, you step on, the scale identifies you automatically via its InBody ID recognition system, measures in 5–20 seconds, and pushes results to the app over Wi-Fi — even if your phone is in another room, on airplane mode, or not even home. Results are waiting for you the next time you open the app.

For households where multiple family members use the scale at different times of day, this frictionless flow is a significant quality-of-life improvement over Bluetooth-only alternatives.

Expanded outputs

The H30 adds four meaningful metrics beyond the H20N's output set:

Body Balance is particularly valuable for fitness users. It compares your upper and lower body muscle development against population norms and flags imbalances — useful for both performance optimization and injury prevention. The Body Type Coordinate places you on a muscle-fat balance chart, giving an intuitive visual read on your overall body composition category.

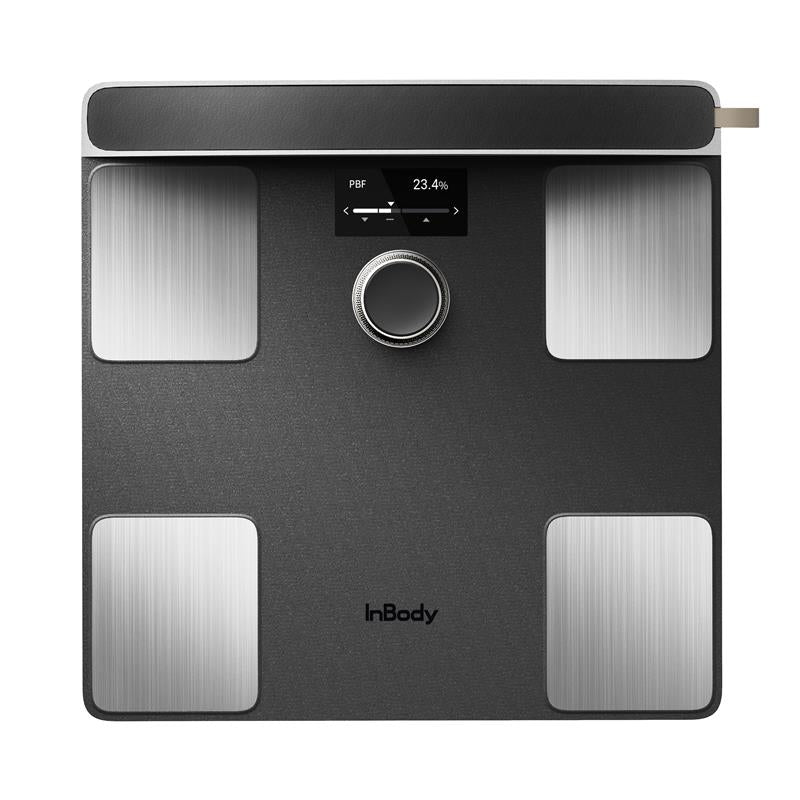

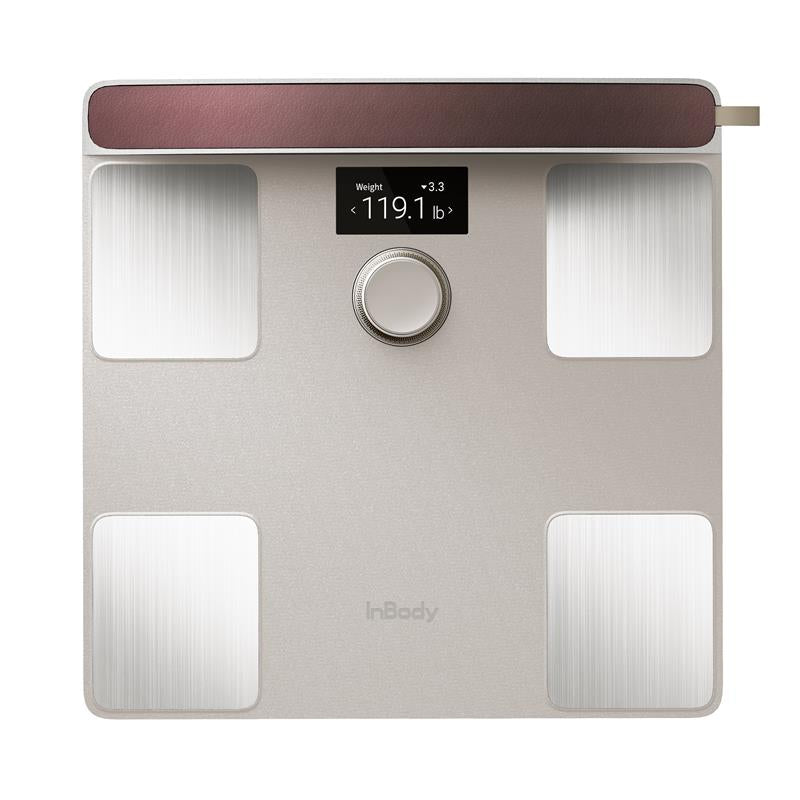

InBody Dial H40 — The Flagship

What the H40 adds over the H30

The headline additions are three new outputs that don't exist on any lower model:

The H30 can tell you your upper and lower body are imbalanced. The H40 can tell you which side. For a runner with a history of right knee issues, for a weightlifter trying to correct a pressing asymmetry, or for a physical therapy patient tracking limb symmetry during recovery — this specificity is the difference between a data point and an actionable insight.

The Leg Muscle Level metric

This deserves special attention. As skeletal muscle mass naturally declines with age — a process called sarcopenia — the legs tend to be the first and most significant area of loss. Reduced leg muscle mass correlates strongly with falls, metabolic slowdown, and functional decline in older adults. The H40's Leg Muscle Level indicator tracks lower-body muscle development against population norms, classifying it and flagging underperformance. It's one of the more clinically meaningful metrics available on any consumer-facing body composition device.

OTA firmware updates

The H40 is the only model in the Dial series that supports over-the-air firmware updates. InBody has committed to rolling out new metrics and feature refinements via these updates, meaning the device you buy today can gain capabilities it doesn't ship with. This future-proofs the investment in a way the H30 and H20N can't match.

Design and materials

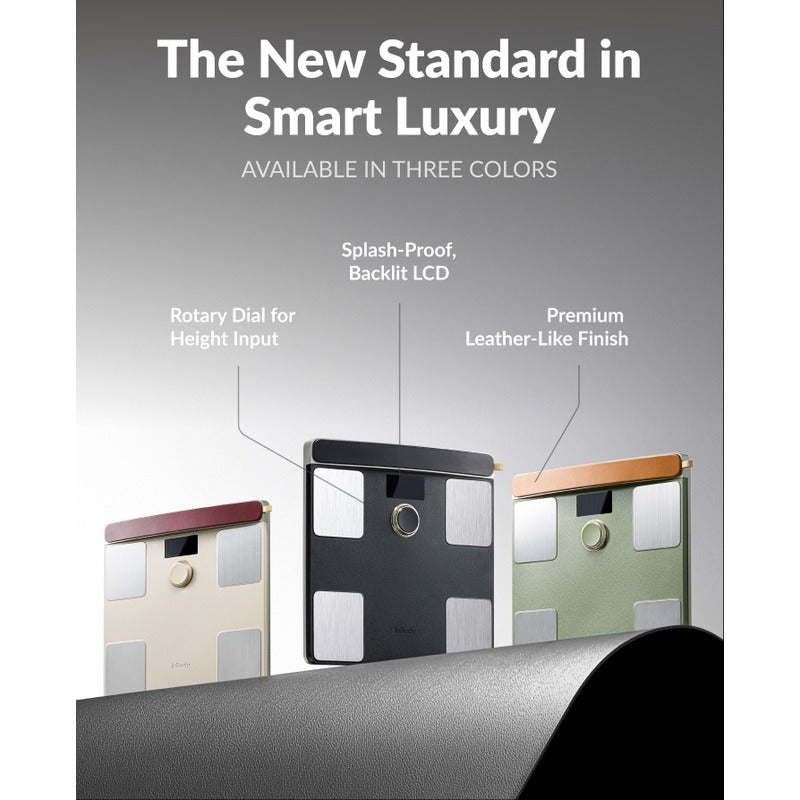

The H40 is also InBody's most considered design statement. The leather top handle, clean sculptural form, and extended colorway (Black, White, and a muted Green) position it as a piece of wellness equipment that belongs on display, not hidden in a closet. It's a minor consideration for most buyers, but relevant for those with a premium home gym or bathroom aesthetic.

Side-by-Side Comparison

Here's a full breakdown of how the three models stack up across every key spec, output, and feature.

Which Model Is Right for You?

The right InBody Dial depends less on budget and more on how you plan to use it and what friction you're willing to accept in your daily routine.
